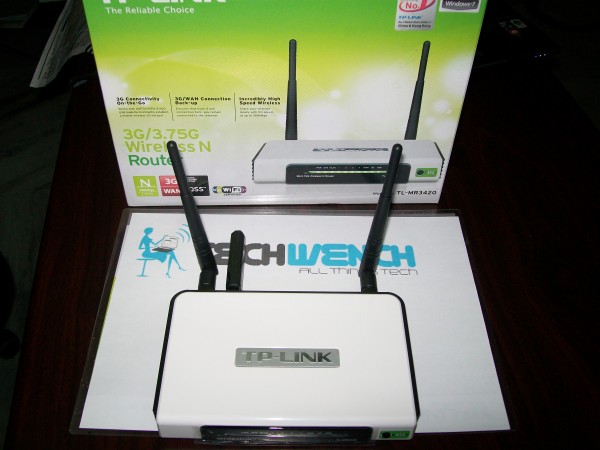

TP Link’s TL MR3420 3 G/3.75G Wireless N Router is here to provide you with feasibility and comfort. It enables you to share 3G/3.75 mobile broadband with your dear and near ones almost anywhere anytime be it in a bus, on a picnic resort, while eating out in a hotel or anywhere else. It is all possible with the 3G/3.75G coverage. Moreover, a fast speed Wi-Fi hotspot is instantaneously set up by just linking a UMTS/HSPA/EVDO USB modem to the router.
One of the most vital issues relating to the 3G/3.75G appliances is compatibility. So in order to make sure these devices do not create compatibility issues with the appliances they connect with or the area where they are being used, TP-LINK assures that the 3G/3.75G Router attunes well with the ISPs of the areas where they are being used. The 3G/3.75G Routers go through various tests by the experts in different areas to ensure the customers do not encounter any compatibility issue.
WAN Support for Uninterrupted On-line Connection:
With TL-MR3420, you absolutely do not need to worry about getting on-line since it has the 3G/WAN connection support. The best thing about it is that you get both the 3G/3.75G preferred and WAN preferred back-up modems unlike any other company which can only offer either one of them. This consequently assures feasibility perfectly in congruency with internet service and least downtime.
TL-MR3420 in accordance with IEEE 802.11n standard can set up a wireless connection with a high transmission speed up to 300Mbps. It ensures complete alleviation of any data loss over long distances. Moreover, you also have the choice to select the wireless network during long distance connection with this device unlike the legacy 11G items.
WPA / WPA2 Encryptions–Enhanced Security:
A safe and secure Wi-Fi is inevitable for any customer however; the WEP encryption over the time has been proved unsuccessful in providing an assurance regarding secure Wi-Fi. So, TL-MR3420 now provides WPA/WPA2 encryptions which are specially designed by Wi-Fi Alliance Industry group, ensuring the security for WLAN.
The Interface has USB 2.0 Port for UMTS/HSPA/EVDO USB Modem. Plus, one 10/100Mbps WAN Port and four 10/100Mbps LAN Ports; it supports the auto-Negotiation and auto-MDI/MDIX. The antenna is detachable and is Omni Directional, the antenna gain is 2x3dBi. The external power supply is a marvelous 9VDC / 0.85A. The dimensions are; 6.9 x 4.4 x 1.2 in. (174 x 111 x 30 mm)
-Operating temperature0°C~40°C (32?~104?)
-Storage temperature-40°C~70°C (-40?~158?)
-Relative humidity10% ~ 90%, Non Condensation
-Storage Humidity5%~95% Non-Condensing
-Standards IEEE 802.11n/g/b, IEEE 802.3/3u, USB 2.0
-Wireless Signal Rates With Automatic Fallback11n: Up to 300Mbps (dynamic).
-Plus the security is; NAT Firewall, SPI Firewall, MAC / IP / Packet / Application / URL Filtering, Denial of Service(DOS), SYN Flooding, Ping of Death. Device management you get would be; Web Based Configuration (HTTP), SNMP v1/2c, Web Based Firmware Upgrade.
-Wireless Transmit Power (MAX) 20dBm(Max. EIRP)
-Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
-Receiver Sensitivity270M: [email protected]% PER
130M: [email protected]% PER
108M: [email protected]% PER
54M: [email protected]% PER
11M: [email protected]% PER
6M: -[email protected]% PER
1M: [email protected]% PER
The Package items will constitute:
- 3G/3.75G Wireless N Router
- 2 Antennas
- Power supply unit
- Ethernet Cable
- Resource CD
- Quick Installation Guide
